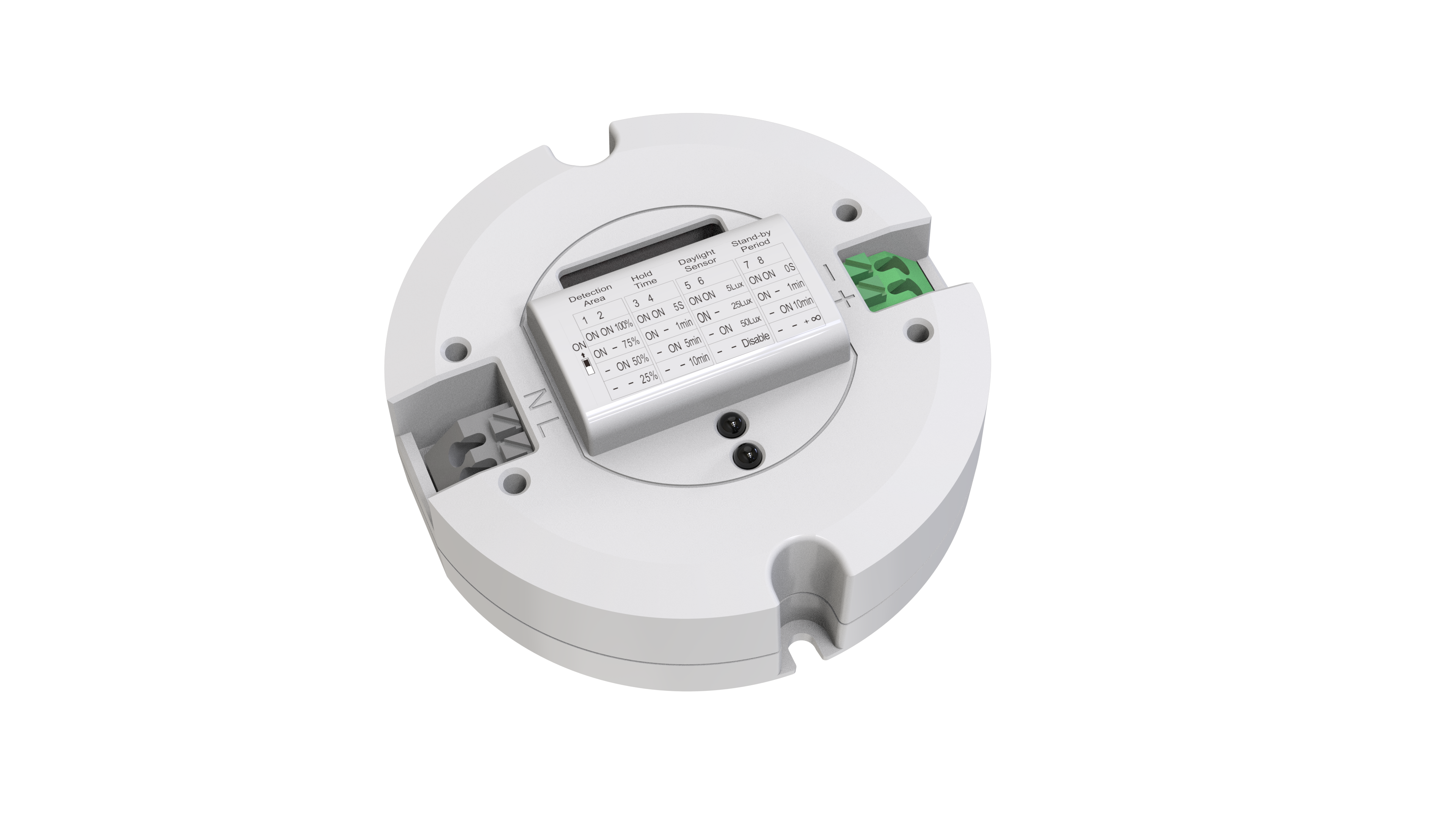

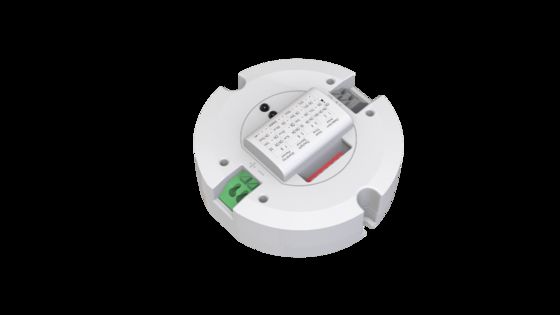

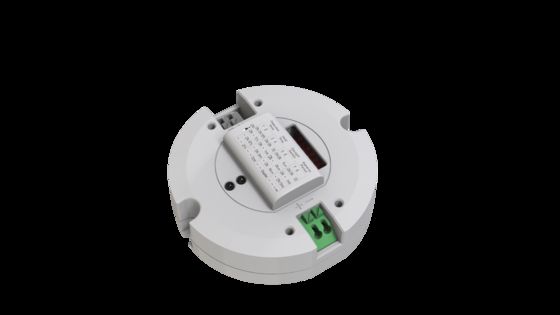

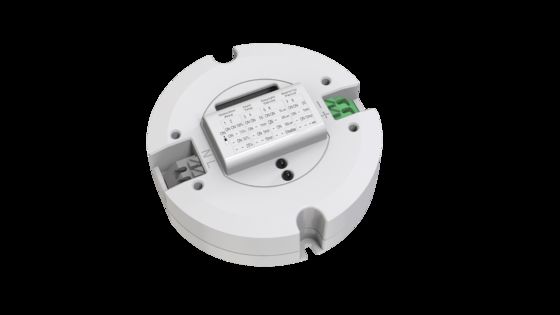

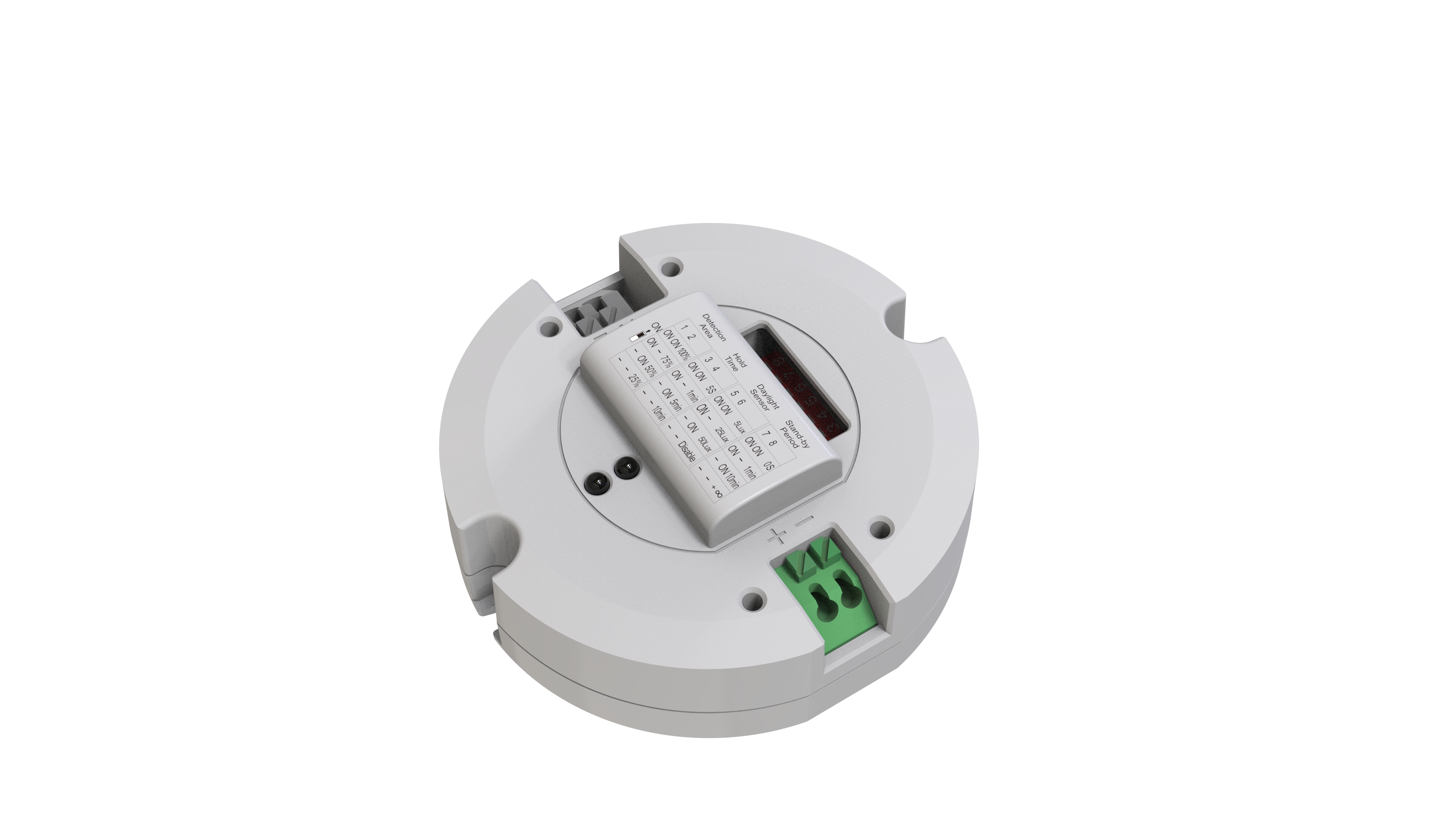

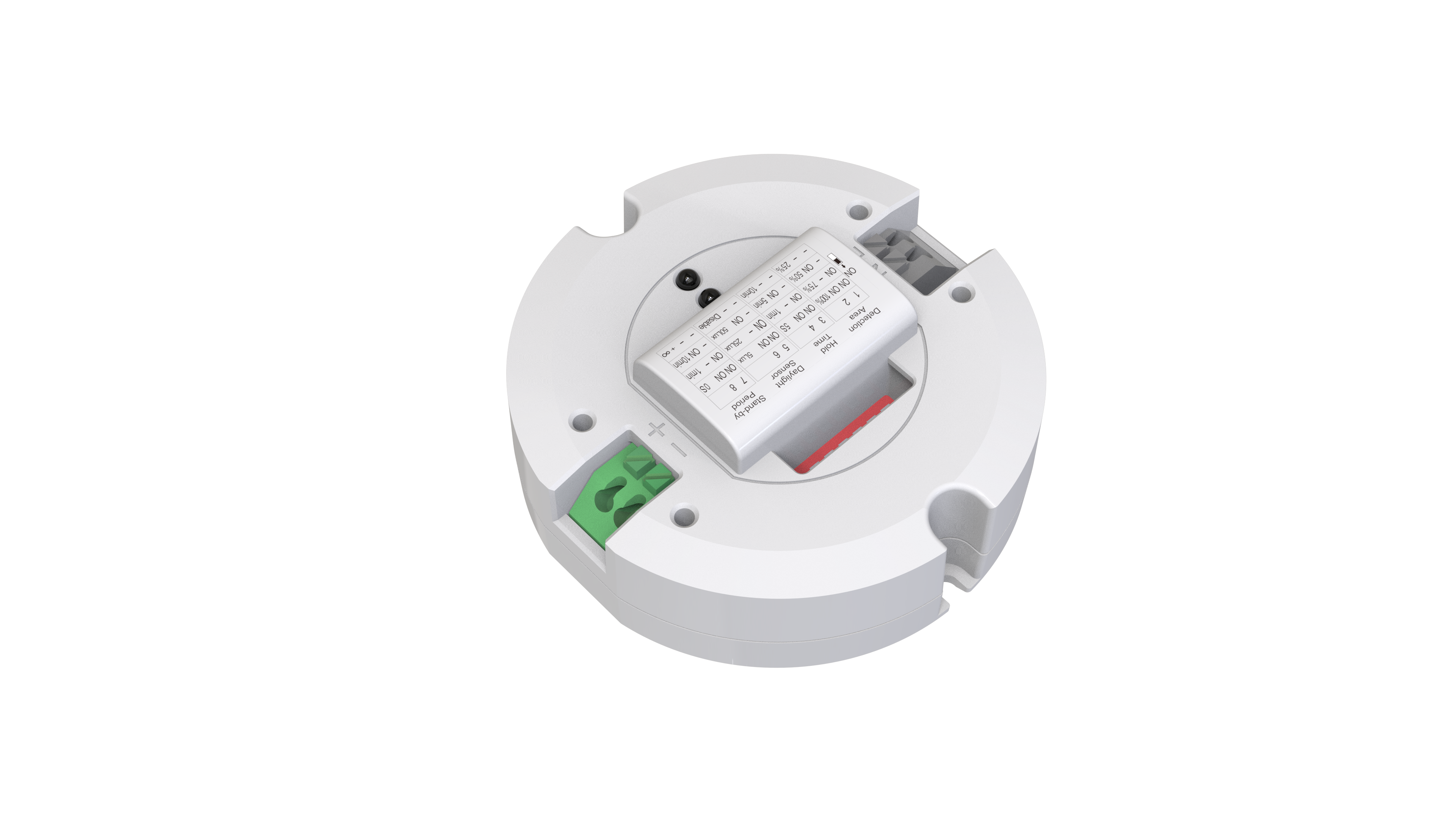

28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light

  • 28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light
  • 28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light
  • 28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light
Menşe yeri Shenzhen, Çin
Marka adı Merrytek
Sertifika CE, RED，FCC
Model numarası MLC28C-NDP2
Min sipariş miktarı 100 adet
Fiyat Anlaşılabilir
Ambalaj bilgileri PE torba kaplama tahtası, karton (K=A)
Teslim süresi 1, Örnek ve Küçük Sipariş: Ödemenizi aldıktan sonra 5 iş günü içinde. 2, Dökme Sipariş: Depozito ald
Ödeme koşulları T/T
Yetenek temini 10000 PC/Ay

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Gerilim öfkesi 220-240Vac 50Hz/60Hz Giriş Akımı ≤0.17A @ 230VAC
Güç faktörü ≥0.90 (230V maksimum yük) Tam yük gücü 25 W Maks
Çalışma frekansı 5.8GHz ±75MHz,ISM bandı Hazırda bekleme gücü <0,1W@230VAC
Vurgulamak

28W LED ceiling light dim driver

,

Non-isolated sensor dim driver

,

LED sensor driver with warranty
Mesaj bırakın
Ürün Açıklaması
MLC28C-NDP2 Sensor DIM LED Driver
Product Features
  • Conform to ERP standard, micro-power consumption
  • 5.8GHz ISM brand, can be batch RED, FCC certification
  • Non-isolated, Flicker-free, Driver+sensor 2 in 1
  • With corridor function, light priority function, suitable for all kinds of use scenes
  • Compact size, easy to install inside the lamps and lanterns
  • All parameters can be adjusted via DIP switch
Technical Parameters
Input
Voltage range 198-264VAC 50Hz /60Hz
Rated voltage 220-240VAC 50Hz/60Hz≤0.12A(@230VAC full load)
Input current ≤0.17A @ 230VAC
Inrush current <15A (100us half-current)@230VAC
Power factor ≥0.90 (230V Max load)
Stand-by power <0.1W@230VAC
Working efficiency 86%,230VAC / Max Load
Lightning surge LN: 1KV
Output
Working model CC
Type of load LED
Full load power 25W Max
Flicker ripple ≤5%
No-load output voltage 60VDC Max
Load current Single current: 450mA /500mA/550mA/700mA
Load output voltage range 24-42VDC 450mA/500mA/550mA 24-36VDC 700mA
Constant current accuracy ±5% @230VAC
Functions
28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light 0
On/OFF function (Setting "stand-by period" to "0s")
28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light 1
3-step dimming function (Setting stand-by period to "1min/10min")
28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light 2
Daylight priority function (Setting stand-by period to "+∞")
Wiring Diagram
28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light 3
Note: The product can be connected to only one load. Connecting more than one load will damage product.
Dimensions (mm)
28W Non-isolated Series Sensor Dim Driver For LED Ceiling Light 4
DIP Switch Settings
Detection Area
1 2 Setting
ON ON 100%
ON - 75%
- ON 50%
- - 25%
Hold Time
3 4 Setting
ON ON 5S
ON - 1min
- ON 5min
- - 10min
Installation & Usage Notes
  • The product should be installed by a professional electrician. Please turn off the power before installing, wiring, changing the setting of the DIP switches.
  • The microwave sensor has good penetration ability to plastic and wooden objects, but the front and near the microwave antenna cannot be equipped with metal accessories.
  • It is recommended that microwave sensors be installed at a distance of more than 2m from switches, routers and other wireless devices to avoid radio interference.
  • Should avoid long-term vibration equipment or moving objects around the microwave sensor.
  • This product is suitable for indoor installation. When semi-outdoor or outdoor installation, wind, rain may be regarded as moving signal trigger induction.
  • If wall mounting, the detection distance of microwave sensor will be greatly increased.
  • Due to continuous improvement, the contents of this instruction could be changed without prior notice.
