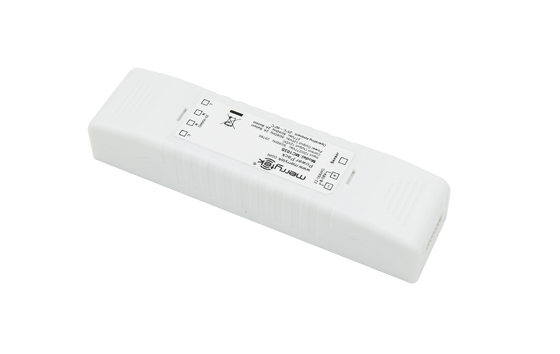

0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current

  • 0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
  • 0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
  • 0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
Menşe yeri Çin
Marka adı Merrytek
Sertifika CE
Model numarası MC103S 1
Min sipariş miktarı 100 adet
Fiyat Anlaşılabilir
Ambalaj bilgileri Kabarcık çanta + Fıçı Tahtası + Karton (K = A)
Teslim süresi 1, Örnek ve Küçük Sipariş: Ödemenizi aldıktan sonra 5 iş günü içinde. 2, Dökme Sipariş: Depozito ald
Ödeme koşulları T/T
Yetenek temini 10,000pcs aylık

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Nominal Gerilim 220-240VAC 50/60Hz Hazırda bekleme gücü ≤1W
Yardımcı Çıkış 12VDC 100mA(Maks.) Çalışma Modu PWM/0-10V/ AÇIK/KAPALI
IP Derecelendirmesi IP20 Ömür boyu 5 yıllık garanti @Ta 230V tam yük
Vurgulamak

0-10V dimmable LED driver

,

PWM dimmable LED driver 100mA

,

DC sensor compatible LED driver
Mesaj bırakın
Ürün Açıklaması
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current
Product Overview

This 0-10V/PWM dimmable LED driver provides 12VDC auxiliary power for DC sensors with maximum 100mA current. Designed to work with Merrytek DC sensors, it enables 0/1-10V dimming and ON-OFF functionality.

Key Features
  • 12VDC auxiliary power supply for DC sensor, maximum 100mA current
  • 220-240VAC input
  • Compatible with Merrytek DC sensors for 0/1-10V dimming and ON-OFF functionality
Technical Specifications
Input
Rated Voltage 220-240VAC 50/60Hz
Stand-by Power ≤1W
Surge Test 1KV(L/N,EN61000-4-5)
Output
AUG Input 5PWM / 0-10VDC
AUG Output 12VDC 100mA(Max)
AC Load Capacity 400W@230Vac(Inductive Load), 800W @230Vac(Resistive Load)
AC Max. Surge Capacity 30A(@ 50% Ipeak, twidth 500us @230Vac full load & start at cold load.)
60A(@ 50% Ipeak, twidth 200us @230Vac full load & start at cold load.)
Interface
Interface 0/1-10V dimming port
Environment
Operating Temperature -25~60°C
Storage Temperature -40℃~80℃, Humidity: ≤85%(Non-condensing)
Certifications & Standards
Certificate CE
Environmental Requirement Compliant to RoHS 2.0, Reach
Safety standards EN61058-1-2, EN61058-1
EMC standards EN61058-1,EN61000-3-2,EN61000-3-3,EN62479, EN301489-1, EN55015, EN300440
IP Rating IP20
Protection Class Class II
Other Specifications
Wiring Press-in Type Terminals, wire diameter:0.75-1.5mm² & 3 pin 2.0mm fast connector
Installation Built-in
Package Bubble bag+Clapboard + Carton(K=A)
Net Weight 65±5g
Lifetime 5 years warranty @Ta 230V full load
Dimensions
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current 0
Wiring Example with Merrytek DC Sensor
0-10V/PWM Dimmable LED Driver For DC Sensor, Maximum 100mA current 1
Note: This product is designed to connect to one load only.
Installation Notice
The sensor should be installed by a professional electrician. Please turn off the power before installing or wiring.
