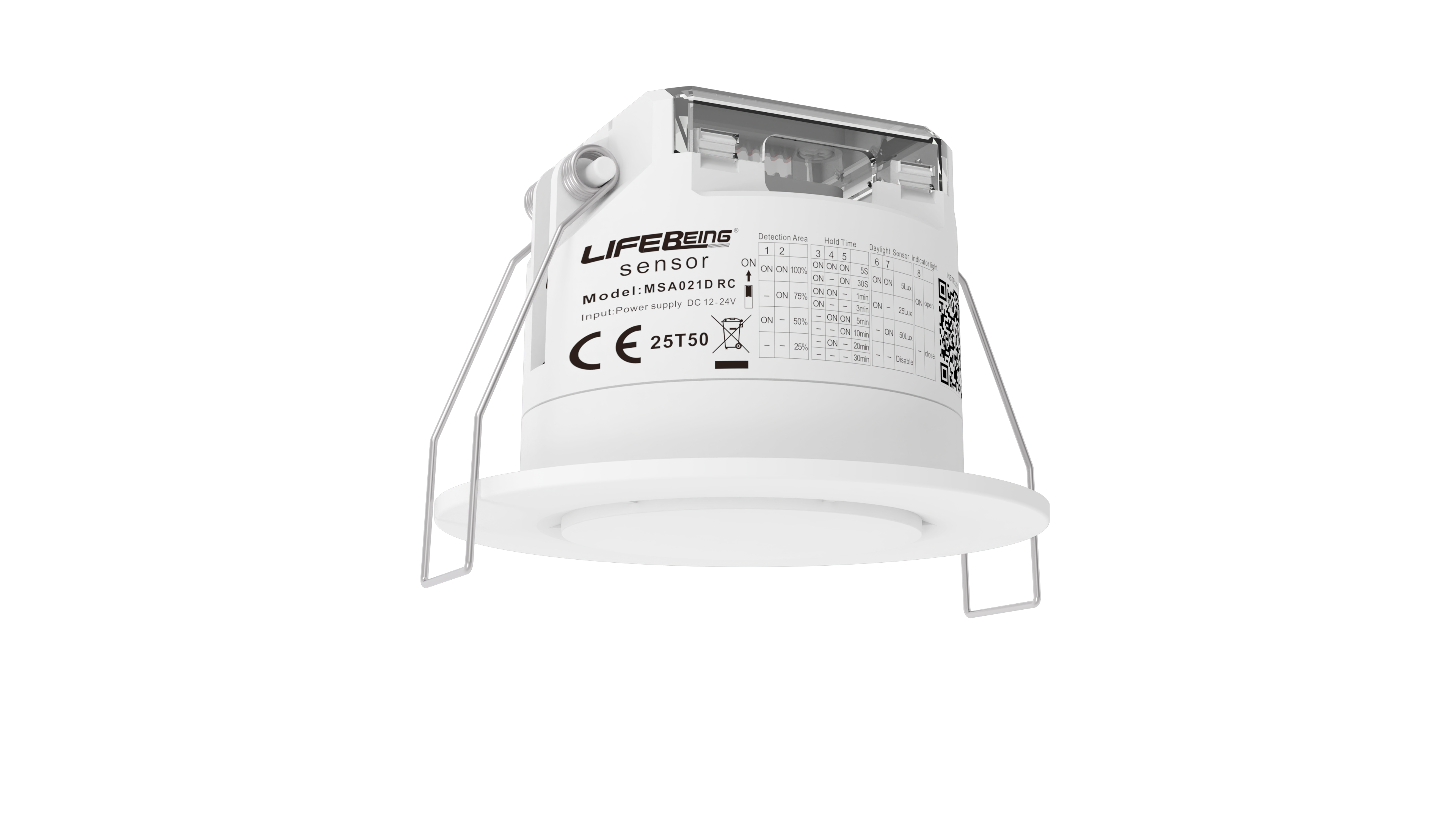

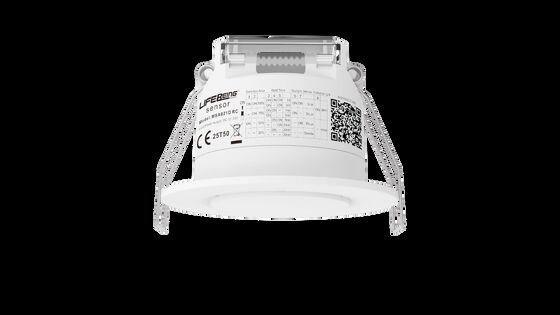

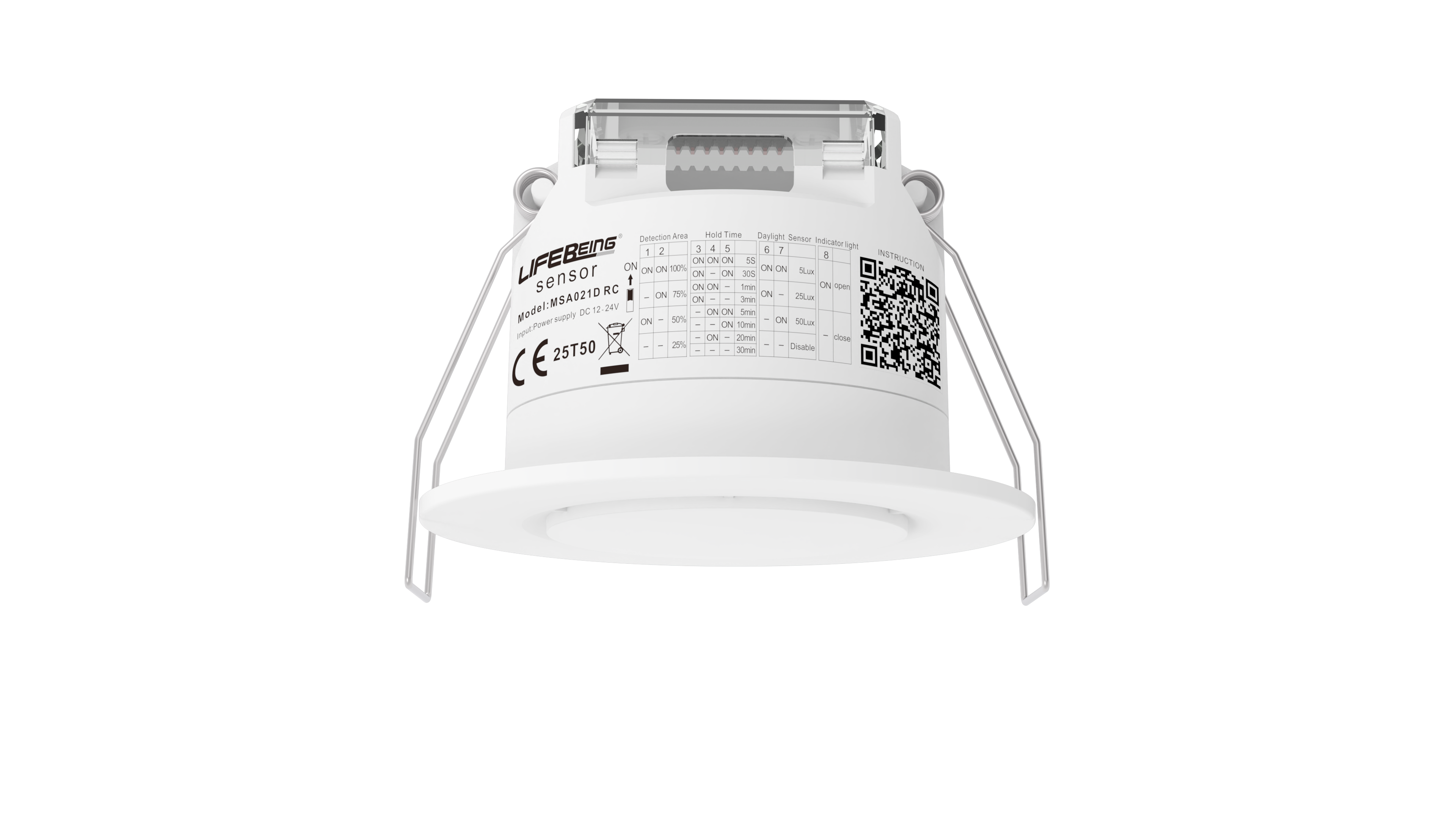

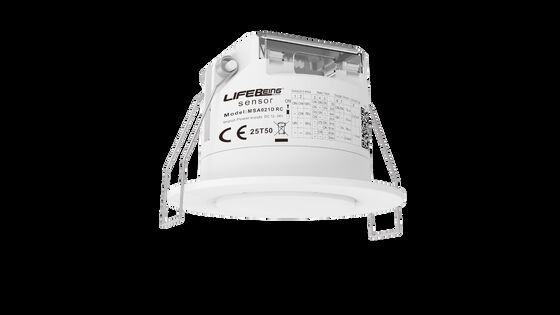

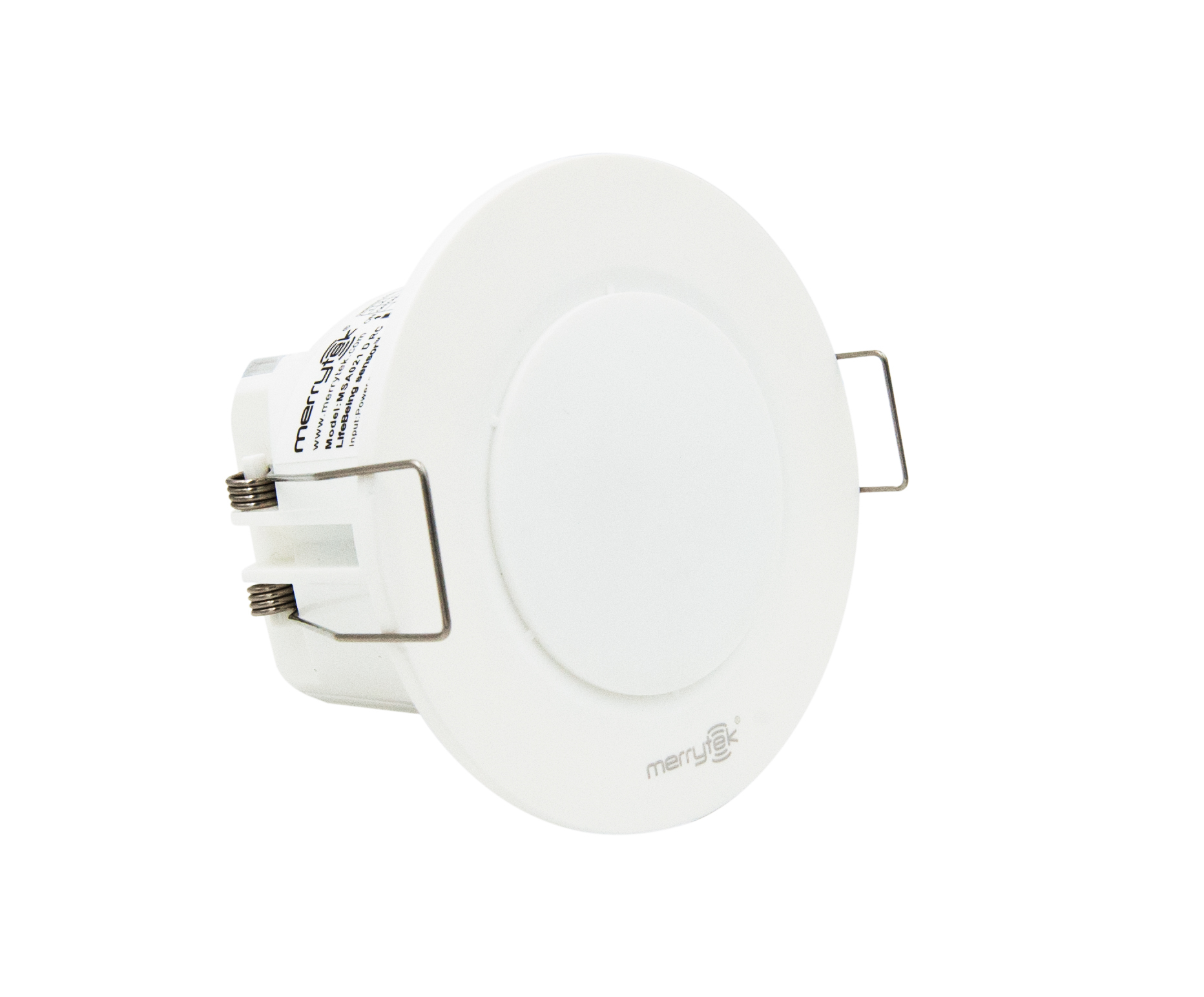

MSA021D RC 24GHz Presence and motion sensor with dry contact output

Menşe yeri	Çin
Marka adı	Merrytek
Sertifika	CE
Model numarası	MSA021D RC
Min sipariş miktarı	100 adet
Fiyat	Anlaşılabilir
Ambalaj bilgileri	Renk kutusu + düz kart + dış kutu (K=A)
Teslim süresi	1, Örnek ve Küçük Sipariş: Ödemenizi aldıktan sonra 5 iş günü içinde. 2, Dökme Sipariş: Depozito ald
Ödeme koşulları	T/T veya Western Union veya PayPal
Yetenek temini	10,000pcs aylık

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

Ürün ayrıntıları

Tespit Teknolojisi	büyük hareket / küçük hareket / Varlık algılama	Çalışma modu	Kuru temas
Nominal Gerilim	12-24V DC	Bekleme Gücü	0.5W
Yük Kapasitesi	36V 50mA maksimum Dirençli	Çalışma Frekansı	24GHz -24.25GHz,ISM bandı
Max. Maks. Mounting Height Montaj yüksekliği	2.5-4m.	Garanti	5 Yıl
Vurgulamak	24GHz RC presence sensor , motion sensor dry contact output , MSA021D presence detector sensor

Mesaj bırakın

Ürün Açıklaması

MSA021D RC 24GHz Presence and Motion Sensor with Dry Contact Output

Product Overview

The MSA021D RC is a sophisticated 24GHz presence and motion sensor featuring dry contact output, designed for reliable detection in various industrial and commercial applications.

Key Features

Exclusive Merrytek Lifebeing Presence Detection
FMCW modulation technology for detecting micro movements from breathing
German RF technology with 5-year guarantee assurance
Accurate Presence/Absence Output
Daylight Sensor Available
NO/NC dry contact output available
24GHz ISM Band Millimeter Wave Radar technology
Major/Minor/Micro Motion detection diameter: 6-8m Max

Technical Specifications

Input/Output
Input voltage	12-24V DC
Rated voltage	12/24V DC
Working Current	@12Vdc: 50mA max @24Vdc: 30mA max
Working Power	≤1W @24V DC
Output signal	NO/NC dry contact (Factory setting is NO dry contact)
Load type	Resistive (load voltage: Vdc≤36V, load current: 100mA max)
Sensor Parameters
Radar frequency	24GHz - 24.25GHz, ISM band
Transmitting Power	5mW Max.
Detection Area	0-5m
Hold Time	10s-30min (For better presence detection, hold time shall be set >30S)
Daylight Sensor threshold	5Lux-150Lux/Disable
QS1+100% detection range radius	Major/minor/micro movement (3m height installation): 4.5±0.5m (based on 41㎡ open area test and might change due to different space)
Remote control	Available
Mounting height	2.5-4.0m (typical value: 3m)
Detecting Angle	120°
Application Environment
Drill hole	Φ65-70mm
Working Temperature	0℃...+50℃
Storage Temperature	-25℃~+80℃ Humidity: ≤85% (non-condensation)
Certificate & Standards
Certificate	RED
Environmental Requirement	Compliant with RoHS
IP Rating	IP20
Guarantee	5 year (only for product quality problem)
