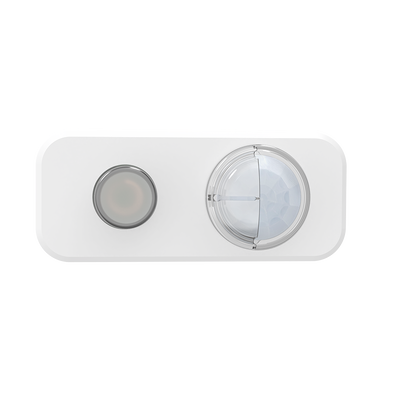

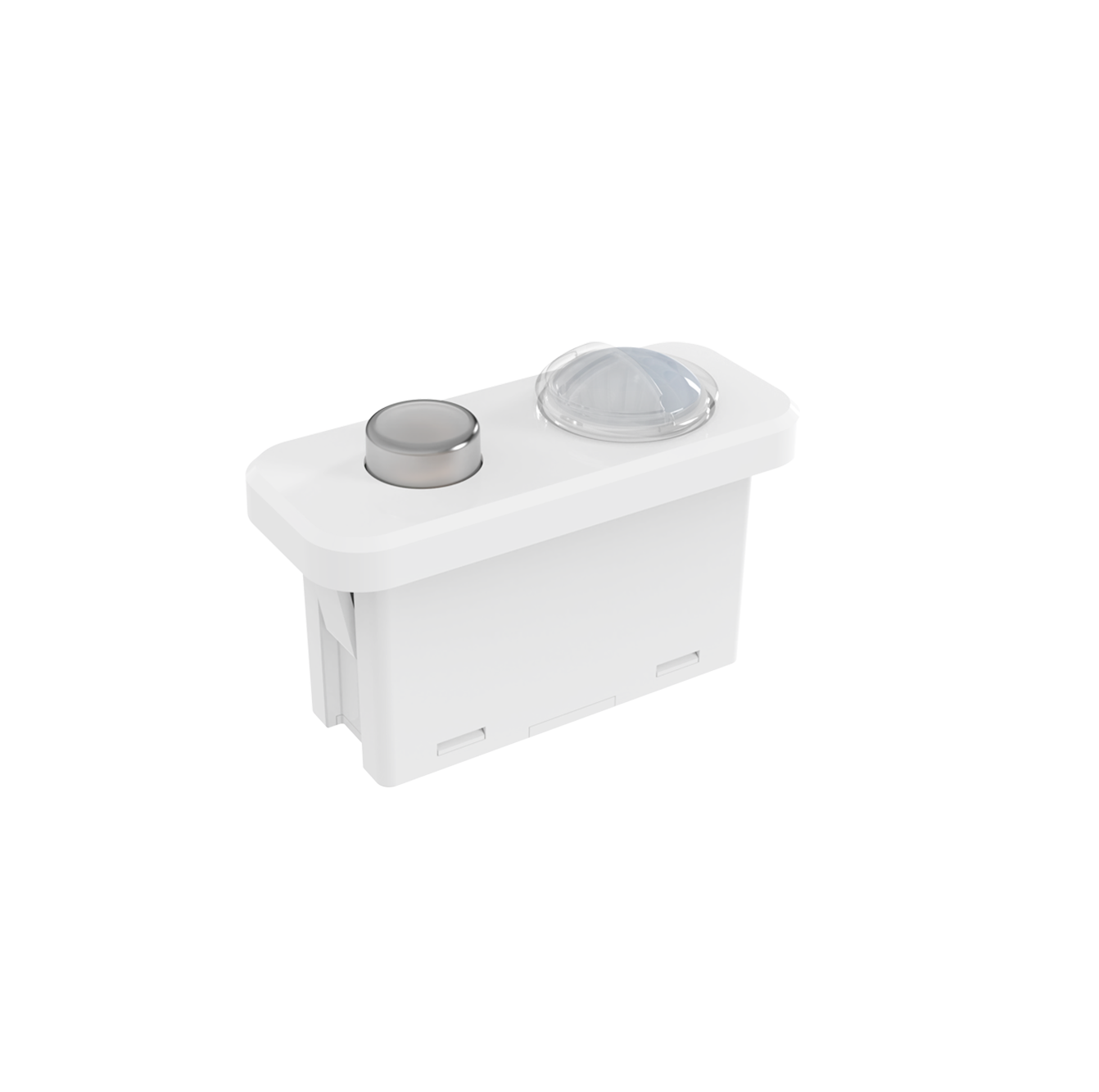

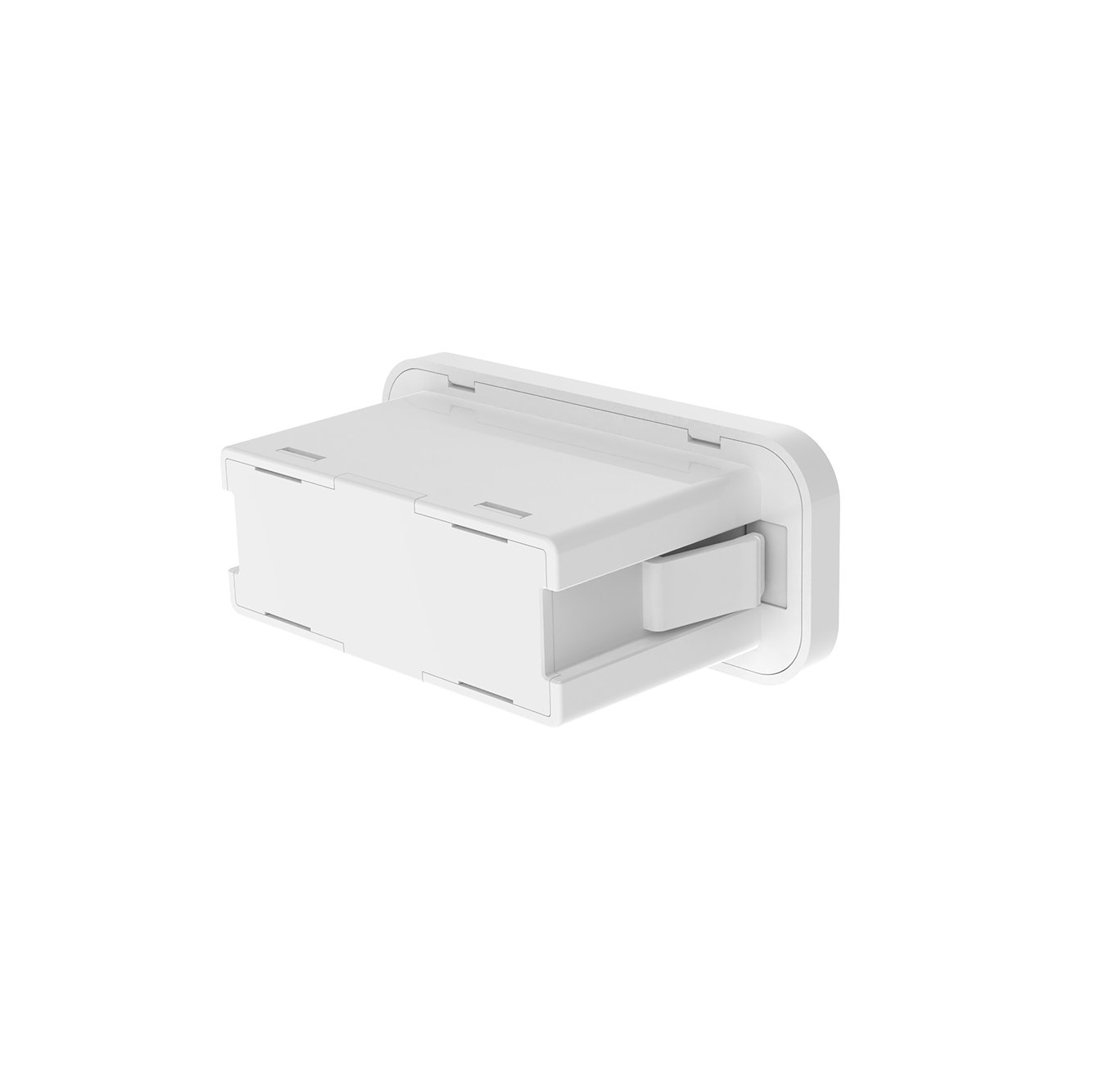

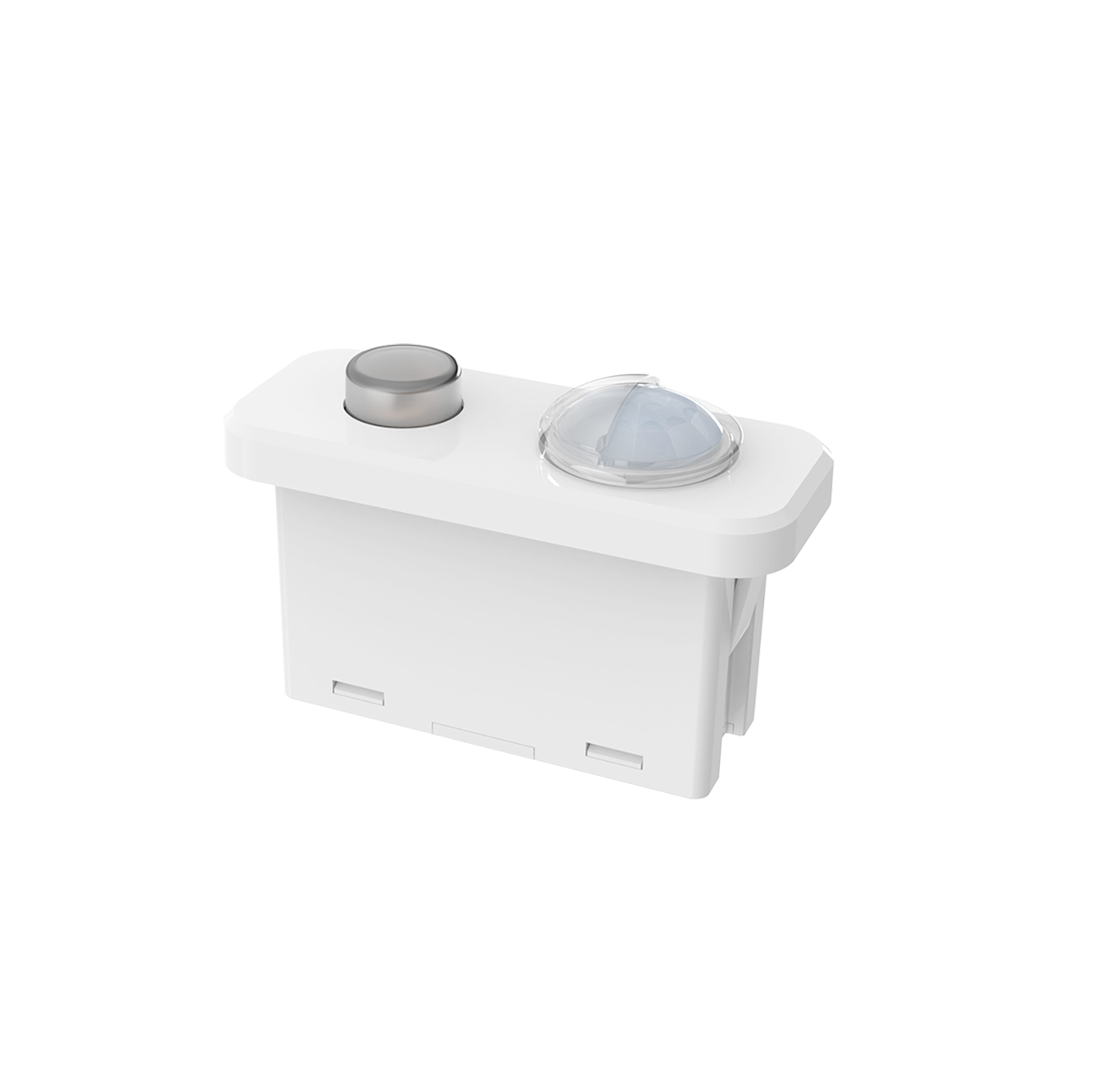

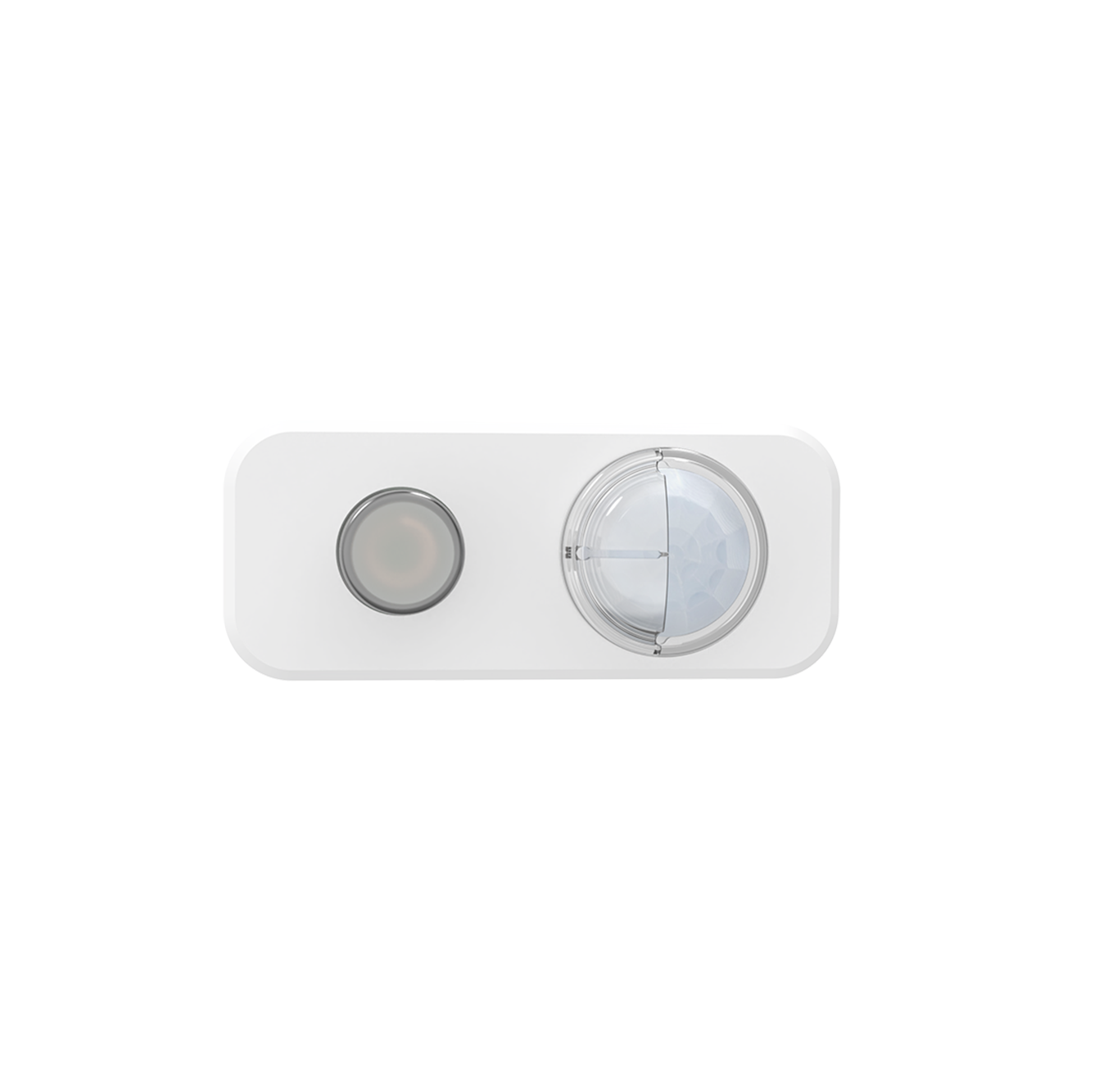

Dali2 & D4i Certified, Dimmable PIR Motion Sensor, Zhaga Book20 Socket, Play & Plug
| Menşe yeri | Shenzhen, Çin |
|---|---|
| Marka adı | Merrytek |
| Sertifika | CE |
| Model numarası | MDA182D IR |
| Min sipariş miktarı | 100 |
| Fiyat | Anlaşılabilir |
| Ambalaj bilgileri | Fıçı Tahtası + Karton(K=A) |
| Teslim süresi | 1, Örnek ve küçük sipariş: Ödemenizi aldıktan sonra 5 iş günü içinde (stokta olduğunda). 2, Toplu si |
| Ödeme koşulları | T/T |
| Yetenek temini | 10000/Ayda |
Ürün ayrıntıları
| Nominal gerilim | 12-24V DC | Çalışma Akımı | 12±5mA@16VDC |
|---|---|---|---|
| Dalgalanma voltajı | <100mvp-p | Çıkış Sinyali | DALI karartma |
| Algılama Modu | PIR Tespiti | Kurulum Yüksekliği | Tipik 3 m (Maks. 4 m) |
| IP Derecelendirmesi | IP20 | Ömür boyu | 5 yıl garanti @TA (kapalı) |
| Vurgulamak | DALI motion sensor dimmable PIR,Zhaga Book20 socket motion detector,D4i certified plug play sensor |
||
Ürün Açıklaması
DALI-2 & D4i Certified Dimmable PIR Motion Sensor
Zhaga Book20 socket compatible plug-and-play motion sensor with DALI-2 and D4i certification for seamless integration with D4i drivers.
Product Features
- DALI-2 & D4i certified for compatibility with D4i drivers
- Motion sensor instance type 3 (303) and light sensor instance type 4 (304)
- Indoor maximum mounting height of 4m with PIR motion detection
- All sensor parameters configurable via DALI central controller
- Zhaga Book20 socket for plug-and-play installation
Technical Parameters
| Input | |
|---|---|
| Rated voltage | 12-24V DC |
| Operating current | 12±5mA @16V DC |
| Ripple voltage | <100mVp-p |
| Output | |
| Output signal | DALI dimming |
| Sensor Parameters | |
| Detection mode | PIR detection |
| Detection area | DALI master setting |
| Hold time | DALI master setting |
| Daylight sensor | DALI master setting |
| Daylight priority | DALI master setting |
| Dimming level | DALI master setting |
| Detection range (radius) | Ceiling installation 3m high: r≥2.5m (100% sensitivity, 60㎡ indoor open space) |
| Installation height | Typical 3m (4m Max) |
| DALI Parameters | |
| Motion instance | 62386-303 |
| Daylight instance | 62386-304 |
| DALI draw | 2mA |
| Environment | |
| Working temperature | -20℃ to +55℃ |
| Storage temperature | -40℃ to +80℃, Humidity ≤85% (non-condensing) |
| Certification Standards | |
| Certified | CE |
| Environmental requirements | RoHS 2.0, REACH compliant |
| IP Rating | IP20 |
| Other Specifications | |
| Wiring | 2 pin PH2.0 terminal |
| Installation requirements | Zhaga Book20 installation |
| Packaging requirements | Clapboard + Carton (K=A) |
| Net weight | 15.8±3g |
| Lifetime | 5 years warranty @Ta (indoor) |
Function Description
| Function | Configuration |
|---|---|
| ON/OFF function | DALI master setting |
| 2-step dimming function | DALI master setting |
| 3-step dimming function | DALI master setting |
| Daylight harvesting | DALI master setting |
| Daylight priority | DALI master setting |
| Network function | DALI master setting |
Product Information
Dimensions (Unit: mm)
Cut-hole size
Function
Wiring
Installation Instruction
Detection Range
Initialization
After switching on power, sensor will warm up for 12 seconds then start to work.
Default Settings
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand by period: 0s, Stand by DIM Level: 10%
Application Notice
- Installation should be performed by professional electrician with power turned off
- PIR sensor cannot penetrate materials - ensure no obstacles between sensor and moving objects
- Detection may be difficult when people wear thick clothing in cold weather
- Heat signals from air conditioners or heating sources may cause false triggering
- For indoor use only - outdoor sunlight affects detection performance
- Dimming performance varies with different DALI-2 drivers
- Daylight threshold measured in sunny environments without shadows
- Detection distance affected by height, mounting position, and environmental temperature
- Requires stable DC power supply with input voltage stability and low ripple factor (<100mV)
- Test with at least 5 units before mass installation in new environments
Note: When ambient temperature approaches human body temperature range (36℃~37℃), PIR motion detection significantly weakens. When ambient or LED tray temperature exceeds 55℃, false triggering may occur - reduce sensitivity or consider alternative sensor placement.
