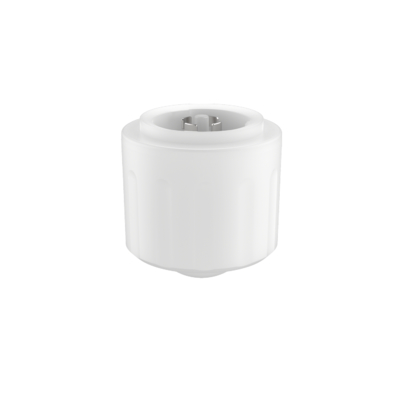

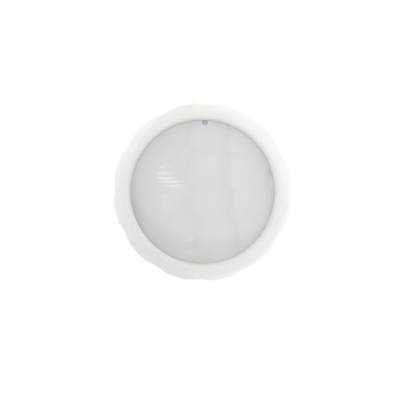

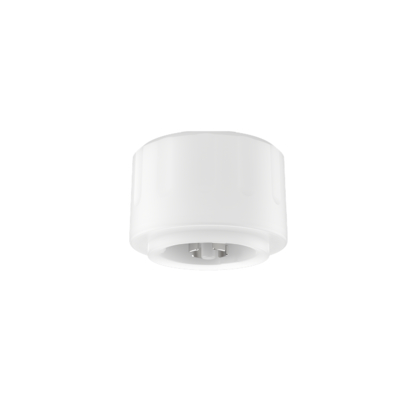

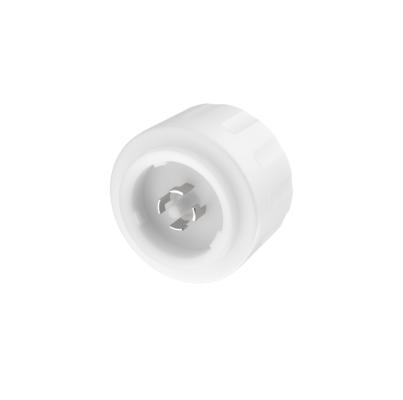

12Vdc PIR Wireless 2.4G Networking Motion Sensor, Daylight Harvesting Available, 12m Max Installation
| Place of Origin | Shenzhen, China |
|---|---|
| Marka adı | Merrytek |
| Sertifika | CE |
| Model Number | MC079D IR ZB |
| Minimum Order Quantity | 100PCS |
| Fiyat | Anlaşılabilir |
| Packaging Details | Clapboard+box (K=A) |
| Delivery Time | 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit. |
| Payment Terms | T/T |
| Supply Ability | 10000 pcs/month |
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.
xÜrün ayrıntıları
| Operating Voltage | 12±1VDC | Operating current | 35±5mA |
|---|---|---|---|
| Output signal | 0-10V dimming signal | Mounting Height | 10m (12m Max ) |
| Operating Temperature | -20℃-55℃ | Certificate | CE |
| Lifetime | 5 years warranty@Ta | ||
| Vurgulamak | 12Vdc wireless motion sensor,2.4G networking PIR sensor,daylight harvesting motion detector |
||
Ürün Açıklaması
12Vdc PIR Wireless 2.4G Networking Motion Sensor
Daylight Harvesting Available, 12m Max Installation
Product Specifications
| Attribute | Value |
|---|---|
| Operating Voltage | 12±1VDC |
| Operating current | 35±5mA |
| Output signal | 0-10V dimming signal |
| Mounting Height | 10m (12m Max) |
| Operating Temperature | -20℃-55℃ |
| Certificate | CE |
| Lifetime | 5 years warranty@Ta |
Product Features
- 12Vdc Input, suitable for DC systems or LED driver with 12V DC auxiliary power output
- 0-10V dimming terminal, 3-step or 2-step is optional, detection area adjustable
- PIR motion detection sensor
- Indoor maximum mounting height is 12m
- All sensor parameters can be set by remote control
- Support wireless 2.4G networking
Technical Parameters
| Input | |
|---|---|
| Rated Voltage | 12±1V DC |
| Working Current | 35±5mA |
| Ripple Voltage | <100mVp-p |
| Output | |
| Output Signal | 0-10V dimming signal |
| Sensor parameters | |
| Detection mode | PIR detection |
| Detection Area | 25%/50%/75%/100% (Remote control setting) |
| Hold Time | 5s/30s/1min/3min/5min/10min/20min/30min (Remote control setting) |
| Stand-by Period | 0s/10s/1min/3min/5min/10min/30min/+∞ (Remote control setting) |
| Stand-by DIM Level | 10%/20%/30%/50% (Remote control setting) |
| Daylight Sensor | Normal daylight: 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (Remote control setting) (Ambient light diffusion) |
| Daylight harvesting | 100L/200L/300L/400L/500L/600L/Disable (enter daylight harvesting mode; reference to remote manual) |
| Detection Area(Radius) | Ceiling mounting height 12m: r≥4m@0.3m/s, r≥3m@1m/s |
| Mounting Height | 10m (12m Max) |
| Wireless parameters | |
| Working Frequency | 2.4GHz |
| Transmitting Power | 6dBm |
| Group nodes | Max 32 PCS (one group) |
| Transmitting Distance | Point to point transmit 15m Max |
| Environment | |
| Working Temperature | -20℃-55℃ |
| Storage Temperature | -40℃~80℃, humidity≤85% (Non-condensing) |
| Certification Standards | |
| Certified | CE UL |
| Environmental requirements | Comply with RoHS 2.0, Reach requirement |
| IP Rating | IP65 |
| Other | |
| Wiring | Standard Zhaga Book 18 connector |
| Installation | External |
| Package | Clapboard+box (K=A) |
| Net Weight | 39±2g |
| Lifetime | 5 years warranty@Ta |
Function Description
| Function | Setting |
|---|---|
| ON-OFF function | Stand-by Period set "0s" |
| 2-step dimming | Stand-by Period set as "+∞" |
| 3-step dimming | Stand-by Period set as "10s/1min/3min/5min/10min/30min" |
| Daylight harvesting | Remote set DH Mode+Daylight Sensor 100L/200L/300L/400L/500L/600L |
| Network function | Remote control setting group (Ex: 1~16), set Rx receiving signal |
Product Information
Dimension (unit: mm)
Wiring
Installation instruction (Zhaga Book 18 can be rotatable installed)
Note: When installing, please note that the microwave antenna plane cannot be blocked by metal.
Detection Range
Remote Control MH17
Initialization
After switch on power, sensor will be warmed 45-60s then start to work.
Default Setting
Sensitivity: 100%, Hold time: 5s, Daylight sensor: Disable, Stand-by period: 0s, Stand-by dim level: 10%
Application Notice
- The sensor should be installed by a professional electrician. Please turn off the power before installing, wiring and changing parameters.
- PIR sensor can't penetrate any materials, please make sure no obstacle between sensor and moving people/object.
- Sensor may hard to detect people if wear thick clothes in cold winter.
- Heat signals will be regarded as moving signals to trigger the sensor. Avoid facing sensor to air condition or other heating source.
- Sensor is for indoor use only. Outdoor sunlight could affect the detection of sensor.
- Due to continuous improvement, the contents of this instruction could be changed without prior notice.
- The dimming performance could be different when work with different 0-10V drivers.
The daylight threshold is measured in a sunny environment without shadow and ambient light diffuse reflection. Ambient lux level could be different in different environment, weather, climate, time-of-day and season.
Detection distance is related to height of people, mounting height, mounting angle, working environment temperature and etc. When ambient temperature approaches the human body temperature range (36℃~37℃/96.8~98.6℉), PIR motion detection will significantly weaken or non-responsive. When ambient temperature or LED tray temperature is higher than 55℃/131℉, false triggering may happen, please try to reduce detecting sensitivity to improve. If stays false triggering, the PIR sensor should not suitable to be used in the space.
Given detecting area is typical value that was measured by 165cm high testers in an indoor open environment.
This product have to use with voltage-stabilized DC power supply whose input voltage is stable and ripple factor is low(ripple factor is lower than 100mV; load current is greater than 25mA).
When installing in new environment, please install and test at least 5pcs product firstly before mass installation.
PIR Sensor Usage Notes
PIR is a pyroelectric infrared sensor that detects changes in infrared rays. Pls pay attention to the following matters during actual use, such as: detecting heat sources other than the human body, the temperature of the heat source does not change or the heat source does not move, and other related environmental factors and violations of the PIR application principle impact.
When detecting heat sources other than the human body due to the following phenomena, the PIR may be falsely triggered:
- When small animals enter the detection range
- When far-infrared rays from sunlight, car headlights, incandescent lamps, etc. are directly exposed to the sensor
- When the temperature in the detection range changes drastically due to warm air, cold air from cold greenhouse equipment, water vapor from humidifiers, etc.
When detecting heat sources due to the following phenomena, the PIR may not trigger:
- When there are substances such as glass and acrylic that block the transmission of far-infrared rays between the sensor and the detection object.
- The heat source within the detection range hardly moves or moves at high speed.
