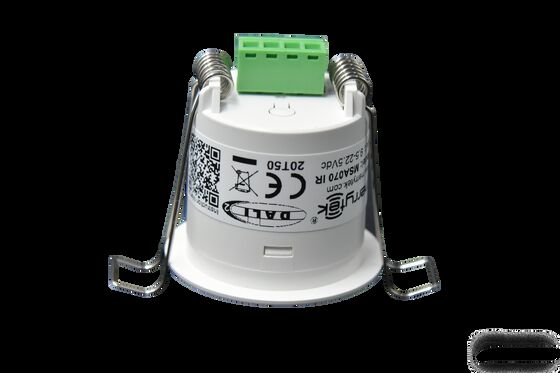

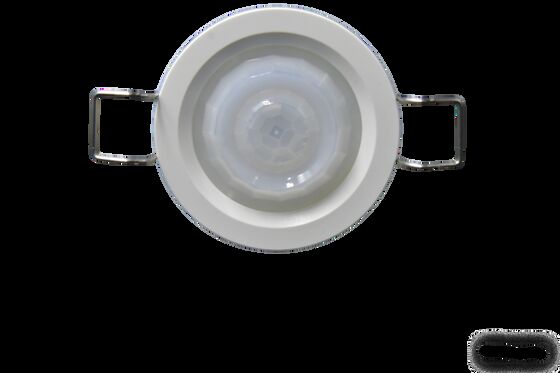

35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode

  • 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
  • 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
  • 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
  • 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode
Menşe yeri Çin
Marka adı Merrytek
Sertifika CE
Model numarası MSA070D IR
Min sipariş miktarı 100 adet
Fiyat Anlaşılabilir
Ambalaj bilgileri Beyaz kutu+ Beyaz kutu etiketleri+ Fıçı tahtası+ Karton(K=A)
Teslim süresi 1, Örnek ve Küçük Sipariş: Ödemenizi aldıktan sonra 5 iş günü içinde. 2, Dökme Sipariş: Depozito ald
Ödeme koşulları T/T
Yetenek temini 10,000pcs aylık
Ürün ayrıntıları
Giriş Gerilimi 12-24VDC Çalışma akımı En fazla 20mA.
Güç Tüketimi ≤0,5W İşlev gerilimsiz/kuru kontak çıkışı
Mevcut Hareket algılama, gün ışığı sensörü Montaj Yüksekliği 2.5-4m.
Kurulum Fırlatmalı kesim boyutu Φ35mm
Vurgulamak

35mm mini PIR motion sensor

,

12-24Vdc dry contact motion detector

,

compact PIR sensor with dry contact
Mesaj bırakın
Ürün Açıklaması
35mm Cut-Out Mini Motion Detector

Compact 35mm cut-out mini motion detector with 12-24V DC operating voltage and dry contact output mode, designed for discreet ceiling installation.

Key Features
  • PIR infrared pyroelectric sensing technology
  • Flat lens design for aesthetic appearance
  • Accurate NO/NC dry contact output
  • Ambient light detection capability
  • Remote control setting of sensing range and delay time
  • Maximum motion detection range: 8-10 meters diameter
  • Ideal for hallway and toilet motion detection
  • Concealed, recessed installation
  • Ultra-small size blends seamlessly with ceiling
Technical Specifications
Input/Output
Input Voltage 12-24V DC
Rated Voltage 12/24V DC
Working Current 20mA max
Power Consumption ≤0.5W @12/24V DC
Output Signal NO/NC dry contact (Factory setting: NO dry contact)
Sensor Parameters
Function PIR motion detection + daylight sensor
Detection Area MH18 remote setting: 00%/75%/50%/25%
Hold Time MH18 remote setting: 2s/30s/1min/3min/5min/10min/30min
Daylight Sensor Threshold MH18 remote setting: 5lux/15lux/30lux/50lux/100lux/150lux/Disable
Radius Detection Range Tangential moving at 3m height: 4-5m @25℃ (radial moving detection range shorter)
Remote Control Available
Mounting Height 2.5-4m (typical: 3m)
Application Environment
Drill Hole Φ35mm
Working Temperature -25℃ to +50℃ (detection range varies with temperature)
Storage Temperature -40℃ to +80℃
Warranty 3 years (for product quality issues in indoor applications)
Wire Standard Wire diameter: 0.2-2.5mm, Stripping length: 7-8mm
Certificate Standard
Certificate Compliant with CE
Environmental Requirements Compliant with RoHS
IP Rating IP20
Note: "N/A" means not available.
Product Dimensions
35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 0
Wiring Diagram
35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 1 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 2
Detection Radiation Pattern
35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 3
Detection Signal Information

The product detects human moving signals:

Moving signal: Detects significant human movement (walking) within the detection area.

Remote Control Options
35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 4 35mm cut-out Mini-motion detector with operating voltage 12-24Vdc and dry contact mode 5
Installation Guidelines
  1. Install by professional electrician in power-off state
  2. Maximum 4m height for indoor use only. Install away from hot or temperature-change-fast areas to avoid false triggers
  3. Ensure no large objects within detection area (sensor cannot detect through objects)
  4. Avoid strong-reflect objects, wifi routers, microwave ovens, etc., in front of sensor to prevent false triggers
  5. Detection range based on 25℃ environment temperature - range varies with temperature changes
  6. Detection optimized for tangential movement - radial movement detection range is shorter due to PIR characteristics
Product Disclaimer

Due to product technology complexity and application environment differences, this specification serves as reference only. We reserve the right to modify product specifications without notification and make no legal commitments or guarantees. Users are encouraged to supplement or modify specification contents based on their product experience.
