Ürün ayrıntıları
Nominal Giriş Gerilimi 220-240Vac 50Hz /60Hz Acil Durum Gücü 3W (özelleştirilebilir)
Acil Durum Zamanı 180mins (özelleştirilebilir) Garanti 5 Yıl
Yük çıkış voltajı 20-60Vdc çalışma sıcaklığı 0°C~50°C
IP Derecelendirmesi IP20 Pil Türü LifePO4 6.4V 1800mAh
Vurgulamak

3W LED emergency driver with warranty

,

5-year warranty LED emergency converter

,

Manual test self test emergency driver
Mesaj bırakın
Ürün Açıklaması

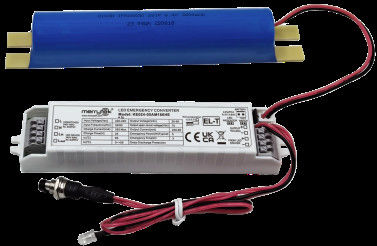

Battery Included 5 Years Warranty 3W 3-hour LED Emergency Converter
Constant power output LED emergency power supply with manual test and self-test options. Features wide output voltage range, input relay switching, and high-performance LifePO4 battery with 5-year warranty.
Product Features
  • Constant power output LED emergency power supply with wide output voltage range
  • Input relay switching
  • High safety, high performance, long life LifePO4 battery
  • Integrated battery management system
  • Manual test and automatic test selection options
Technical Parameters
Charge Part KE024 02AM180HE 03AM180HE 04AM180HE 05AM180HE
Rated input voltage 220-240Vac 50Hz/60Hz
Rated input current 0.06A Max. @230Vac
Input inrush current 10A(Twidth=100us 50% Ipeak )@230Vac(Cold start at full load)
Power factor ≥0.5@230Vac
Input power <4W@230Vac
Battery charging current 250mA 250mA 350mA 350mA
Battery charging time 24 hours Max.
Emergency Part Emergency mode
Load type LED
Emergency power 2W 2.5W 4W 5W
Emergency time 3 hours
Load output current 100-30mA 125-41mA 200-65mA 250-80mA
Load output voltage 20-60Vdc
Battery 6.4V 1.8Ah 6.4V 1.8Ah 6.4V 3.6Ah 6.4V 3.6Ah
Battery warranty Warranty 5 years @5~60℃
Exception Driver Requirements
Surge current 8A
Input current 3A Max.
Output current 2A Max.
LED Indication (Manual Test)
Charging Green light
Fault Green light off
Emergency Function Test
Manual test Default
Auto test Settable
Auto Testing Status Indicators
Fault/Test Status Reason Charge Indicator Status
The battery is fully charged and operational Standard daily use Solid green
Battery Charging Initial Charge/Battery Top Up Flashing green 1 sec on 1 sec off
Auto Test 3 Hours (every 12 months) Periodic self-test Flashing Green 3 sec on 1 sec off
Auto Test 5 Min (every 30 days) Periodic self-test Flashing Green 3 sec on 3 sec off
Duration test fault Automatic test failed Flashing Red 0.5 sec on 0.5 sec off
LED fault Not plugged in or damaged/faulty Flashing Red 2 sec on - 2 sec off
Battery Disconnected/Faulty Not plugged in or damaged/faulty Solid red
Emergency Protection
Battery over-charge/deep discharge protection Yes
Output over-voltage protection Yes
Output overload protection Yes
Output short circuit protection Yes
Operating Environment
Operating temperature/humidity 0℃…+50℃, Humidity: 20%-75%(without condensation)
Storage temperature/humidity -5℃-35℃
Case Max. Temp(Tc) 75℃
Safety & EMC Standards
Withstand voltage 3000Vac 5mA 60s (Input "L N" - output "SEC+ SEC-")
Safety standard EN61347-1, 60598-2-22, 61347-2-7, 62034
EMC standard EN55015, EN61000-3-2, EN61000-3-3
Battery standard UN38.3
Environmental protection requirements Compliant with RoHS
Certification CE
Additional Specifications
Input/output(terminal/wiring) specification Press terminal, wire diameter: 0.5-0.75mm²
IP rating IP20
Type of protection Class 2
Installation type Built-in installation
Installation dimension 146×30×22.5mm
Packaging requirement White box+Instruction manual+clapboard+outer carton(K=A)
Weight 75g (driver)
Lifespan 5 Year @Ta
Note: All parameters are tested on the input voltage 230VAC, environment temperature 25℃, unless otherwise specified.
Battery Dimensions
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 0
Fig A. Battery Dimension
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 1
Fig B. Battery Dimension
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 2
Fig C. Battery Dimension
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 3
Fig D. Battery Dimension
Converter Dimensions
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 4
Wiring Diagrams
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 5
OR
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 6
Manual Test and Auto-test Switch
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 7
Wire Preparation
Battery included 5 Years Warranty 3W 3-hour LED Emergency converter manual test and self test Optional 8
  • Solid or Stranded wire type: 0.5 - 0.75 mm²
  • To access or remove the wires from the terminals, use a screwdriver to push the buttons down
Manual Test & Operation Instructions
  1. Before installation, set Pin short: Manual Test.
  2. Connect the wire according to the wiring diagram.
  3. L, N power on, Switch on S1. Then the load lamp turns on, the emergency driver indicator light will turn green, emergency power supply will be normally charging. Turn off Switch S1, and the load lamp turns off.
  4. Emergency Simulation: Switch on, the load lamp turns on, press the switch(TEST SWITCH), then switch to emergency mode, the indicator light of the emergency driver will be extinguished. Release the switch(TEST SWITCH), then the lamp is powered by the LED driver, and the indicator light will turn on.
Automatic Test & Operation Instructions
  1. Before installation, set the pin open for the automatic test.
  2. Connect the wire according to the wiring diagram.
  3. L, N power on, start the clock, and periodic self-test. To replace the battery, turn off the power supply, and re-time.
Battery Application Notice
  1. The battery should be recharged and discharged semiannually in normal use conditions.
  2. Do not connect to the circuit when the battery is not used to prevent over-discharging of the battery due to self-consumption of the circuit board.
  3. Please keep the battery away from the heat source when installing and using it, and only allow it in a certain working temperature range.
  4. The battery should be stored in a cool and dry environment.
  5. After a long time of storage, the battery is cycled every 12 months as required.
  6. AC power is off, and the clock lasts for 7 days. Power on and re-time. To replace the battery, turn off the power supply, and re-time.
